ŁAŃCUCHY I OSPRZĘT KOTWICZNY

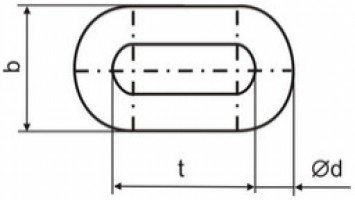

Łańcuch okrętowy
|
Rozmiar łańcucha d [mm] |
Wymiary | STALOWY | MANGANOWY |
Masa ˜ [kg/m] |
|||
|---|---|---|---|---|---|---|---|
|
t [mm] |
b [mm] |
PF [kN] |
BF [kN] |
PF [kN] |
BF [kN] |
||
| 7,0 | 22,0 | 23,0 | 9,0 | 18,0 | 18,0 | 32,0 | 1,00 |
| 8,0 | 24,0 | 26,0 | 12,0 | 25,0 | 25,0 | 40,0 | 1,35 |
| 9,0 | 27,0 | 30,0 | 16,0 | 32,0 | 32,0 | 51,0 | 1,80 |
| 10,0 | 28,0 | 34,0 | 20,0 | 40,0 | 40,0 | 64,0 | 2,25 |
| 11,0 | 31,0 | 36,0 | 22,0 | 45,0 | 45,0 | 80,0 | 2,70 |
| 13,0 | 36,0 | 44,0 | 32,0 | 64,0 | 64,0 | 106,0 | 3,80 |
| 14,0 | 41,0 | 47,0 | 40,0 | 80,0 | 80,0 | 128,0 | 4,40 |
| 16,0 | 45,0 | 54,0 | 50,0 | 100,0 | 100,0 | 160,0 | 5,80 |
| 18,0 | 50,0 | 60,0 | 63,0 | 126,0 | 126,0 | 205,0 | 7,30 |
| 20,0 | 56,0 | 67,0 | 80,0 | 160,0 | 160,0 | 252,0 | 9,00 |
| 23,0 | 64,0 | 77,0 | 100,0 | 200,0 | 200,0 | 333,0 | 12,00 |
| 26,0 | 73,0 | 87,0 | 126,0 | 252,0 | 252,0 | 425,0 | 15,00 |
| 28,0 | 78,0 | 94,0 | 150,0 | 300,0 | 300,0 | 494,0 | 17,50 |
| 30,0 | 84,0 | 101,0 | 170,0 | 340,0 | 340,0 | 566,0 | 20,00 |
| 33,0 | 92,0 | 112,0 | 200,0 | 400,0 | 400,0 | 685,0 | 24,50 |
| 36,0 | 101,0 | 122,0 | 250,0 | 500,0 | 500,0 | 851,0 | 29,00 |
| 39,0 | 109,0 | 132,0 | 280,0 | 560,0 | 560,0 | 955,0 | 34,00 |
| 42,0 | 118,0 | 142,0 | 340,0 | 680,0 | 680,0 | 1110,0 | 40,00 |
